In many industries, engineers face problems with moving heat efficiently. This is especially true when machines work under high pressure, very hot or cold temperatures, and in small spaces. Traditional shell-and-tube heat exchangers can have problems like expanding metal, frequent repairs, and energy loss.

The hairpin heat exchanger solves these problems. Its U-shaped tube design helps move heat more quickly, fits in a small space, and is easy to clean and maintain.

It can also handle heat stress, pressure changes, and corrosive fluids. That is why it is used in oil and gas, chemical plants, power plants, and refineries.

By understanding the design and key features of hairpin heat exchangers, engineers can choose a system that is reliable, energy-efficient, and low maintenance.

On this page, you will learn how hairpin heat exchangers work, their main features, and tips to use them efficiently.

What is a Hairpin Heat Exchanger?

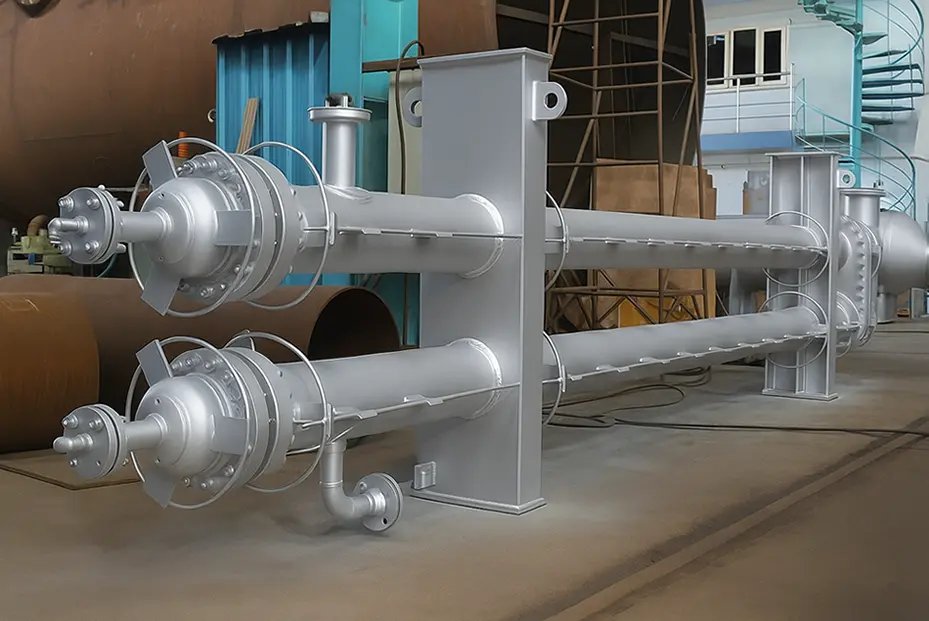

A hairpin heat exchanger is an industrial heat transfer device with U-shaped tubes, designed for high thermal efficiency through countercurrent flow. Widely used in chemical plants, oil and gas refineries, and power generation, it saves energy, handles high pressure, and reduces maintenance while fitting into compact spaces.

Benefits and Applications of Hairpin Heat Exchangers

Key Benefits:

• Superior Heat Transfer: The counterflow heat exchanger design helps heat move more efficiently. This works really well in systems with big temperature changes. It saves energy by making better use of heat and lowering how much energy is used overall.
• Compact Design: The U-bend heat exchanger shape takes up less space, which is great for places with limited room. It also lowers building and setup costs, making it a smart choice for tight areas.
• Durability: These heat exchangers are built to handle high-pressure heat exchanger conditions and high temperatures. This makes them great for tough jobs and helps them last longer, which means fewer breakdowns and less expensive downtime.
• Low Fouling & Easy Maintenance: The single-pass heat exchanger design means less dirt and build-up. The tubes can be removed, making cleaning faster and cheaper. This lowers maintenance costs and improves how well the system works.
• Modular & Scalable: You can add more units or change them as needed. This gives flexibility and helps keep costs low as your system grows or changes. These modular heat exchangers can be tailored to meet the needs of a variety of systems.
• Material Flexibility: These heat exchangers can be made from strong, corrosion-resistant heat exchanger materials like stainless steel heat exchangers, titanium heat exchangers, and nickel alloy heat exchangers. This makes them good for tough fluids and offers a long-lasting, cost-effective solution.

Applications:

• Chemical Processing: Used to heat, cool, or turn fluids into vapor while saving energy and lowering operating costs by using heat more effectively. Chemical process heat exchangers are critical in such industries.
• Oil & Gas: Good for high-pressure heat exchanger jobs. Helps save energy and money by recovering heat and making systems work better.
• Power Generation: Handles big changes in temperature. Saves fuel and helps lower emissions by improving energy efficiency, such as with boiler feedwater preheaters.
• Food & Pharma: Easy to clean and keeps high hygiene standards for important processes. Also saves energy and reduces waste, making it better for the environment. Often uses sanitary heat exchangers for food-grade applications.

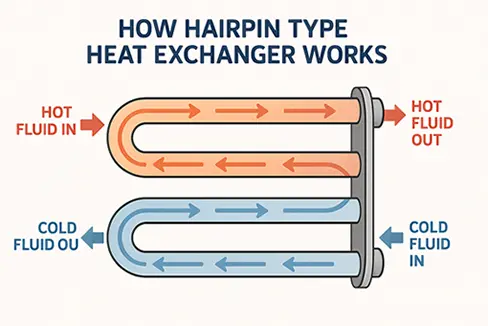

How Does a Hairpin Heat Exchanger Work?

A Hairpin Heat Exchanger uses U-tube design to transfer heat between two fluids. These fluids move in opposite directions (called counter-current flow), which helps keep a big temperature difference between them. This makes the system more efficient. Hairpin heat exchangers are compact heat exchangers that are strong and often work better than regular shell-and-tube heat exchangers, especially in places with high pressure and high temperature.

How It Works

• Construction: A Hairpin Heat Exchanger has one small tube inside a bigger one. Both are bent into a U-shape. In bigger systems, there can be many U-tubes inside a large shell. This smart design saves energy and space while keeping heat transfer high.
• Fluid Channels: The primary fluid moves through the inner tube. The secondary fluid flows in the opposite direction through the space between the tubes (called the annular space). This setup improves heat recovery and saves energy over time.
• Counter-Current Flow: The hot fluid goes into one end of the inner tube and comes out the other. At the same time, the cold fluid flows into the outer shell from the opposite end. This design allows the most heat to move between the fluids, making the system very efficient and saving energy.
• Heat Transfer: Heat moves from the hot fluid to the cold fluid the whole time. This keeps temperatures close and helps the system use less energy, which saves money over time.

Key Advantages

• High Thermal Efficiency: The counter-current design helps move heat better, lowering energy use and saving money.
• Compact Design: The U-tube shape takes up less space but still provides long paths for heat transfer. Great for places with limited room.
• Durability: These exchangers are made to handle extreme pressure and temperature, which means they last longer and need fewer repairs.
• Low Maintenance: The removable tube bundles make cleaning easy. This means less downtime and lower maintenance costs.
• Modular: The system can grow or change as needed. This makes it easier to manage costs and meet future needs.

Summary:

Hairpin Heat Exchangers use a smart U-tube design to move heat between fluids in opposite directions. They are efficient, save space, and work well in tough conditions. Because they are easy to clean, strong, and can be expanded, they are a smart choice for many industries.

When to Use Hairpin Heat Exchangers?

Hairpin heat exchangers are ideal for challenging applications where high performance is required. Their compact design and true counter-current flow make them superior to multi-pass shell-and-tube exchangers in various conditions.

• Temperature Cross: Hairpin exchangers are efficient when the cold fluid's outlet temperature exceeds that of the hot fluid, offering better thermal performance in such situations.
• High Pressure & Extreme Temperatures: These exchangers are built to handle high-pressure heat exchanger and severe thermal conditions, making them perfect for demanding industries like oil and gas and chemical processing.
• Viscous & Fouling Fluids: With enhanced tube designs, such as low-fin tubes, hairpin exchangers improve heat transfer especially in systems dealing with thick or fouling fluids.
• Phase Change & Vaporization:Hairpin exchangers are excellent for applications requiring complete vaporization or phase changes, such as in steam condensers or cryogenic heat exchangers.

Why Hairpin Heat Exchangers Preferred?

Hairpin heat exchangers are popular because they transfer heat very well, take up less space, and are built to be strong and reliable. Their U-tube design allows fluids to move in opposite directions (pure counter-current heat exchanger), which improves how heat is transferred. This makes them a great choice for small spaces and tough working environments.

Main Benefits:

• High Thermal Efficiency: The U-tube heat exchanger design helps move heat more efficiently. It allows the hot and cold fluids to get very close in temperature, saving energy and lowering costs over time.
• Compact Footprint: Hairpin heat exchangers are smaller than regular shell-and-tube models. This makes them perfect for places with limited space, like skid-mounted systems or when upgrading old systems (retrofits).
• Strong and Durable: These heat exchangers are made to handle very high pressures (up to 200 bar) and temperatures (up to 800°C). Their strong design means they work well in tough conditions without breaking down. This helps avoid expensive repairs and keeps systems running smoothly.
• Corrosion Resistance: They are built using materials like stainless steel heat exchangers, titanium heat exchangers, and nickel alloy heat exchangers, which can handle corrosive fluids. This makes them last longer, especially in industries that deal with harsh chemicals.
• Easy to Maintain: The U-tube design makes cleaning and inspection easier. The tubes can be removed for fast servicing, which means less downtime and lower maintenance costs. This helps systems stay efficient and reduces operating costs.
• Versatile: Hairpin heat exchangers are great for high-pressure, high-temperature, and fast-changing heat conditions (thermal cycling). They are used in many industries like oil & gas, chemical processing, food production, and water treatment. Their flexible design helps them perform well even in extreme conditions.

Why Choose Hairpin Over Multi-Pass Exchangers?

Compared to multi-pass heat exchangers, Hairpin heat exchangers:

• Transfer heat better
• Take up less space
• Cost less to maintain

This makes them a top choice for industries that want to save energy, reduce costs, and get reliable performance.




Hairpin heat exchanger design

The design of a hairpin heat exchanger is based on a single-pass U-tube inside a larger outer shell. This setup uses countercurrent flow, where fluids move in opposite directions. This makes the system very efficient at transferring heat and helps it fit into smaller spaces. That’s why it's a good choice for many industrial uses.

It also includes special features to handle high pressure and temperature, allow for thermal expansion, and make cleaning and maintenance easier.

Core Design Features

1. U-Tube Configuration: Hairpin heat exchangers use U-shaped tubes that look like a hairpin. These tubes sit inside a larger shell. In bigger systems, there can be many U-tubes working together.
2. Countercurrent Flow: The fluids move in opposite directions — one flows through the inner tubes, and the other flows through the space between the tubes (called the annular space). This setup keeps a strong temperature difference, which improves heat transfer.
3. Thermal Expansion Accommodation: When metal heats up, it expands. The long-radius U-bends in the tubes can bend slightly, so they absorb the expansion and shrinking that happens during heating and cooling. This means there’s no need for extra parts like metal expansion joints.
4. Compact Footprint: Because of the smart U-tube design, these heat exchangers can move heat efficiently in a small amount of space. They are more compact than traditional shell-and-tube exchangers, which is great for places where space is limited.

Key Design Considerations

• Tube and Shell Materials: Materials are selected based on temperature, pressure, and fluid type. Corrosion-resistant materials are often used for harsh environments.
• Closures:
• Standard Closure: One sealing surface for both shell and tube sides.
• Separated Head Closure: For high-pressure, cyclic, or extreme temperature conditions.
• Maintenance & Cleaning: The removable tube bundles and bare tube design allow for easy cleaning, reducing downtime and maintenance costs.



Common Issues with Hairpin Heat Exchangers and How to Fix Them

Hairpin heat exchangers are known for their high thermal efficiency and compact design, but like any equipment, they can face several common issues. These include fouling, leakage, corrosion, vibration, excessive pressure drop, and air pockets. Understanding the causes and fixes for these problems is crucial for ensuring the long-term performance of the heat exchanger.

Fouling and Scaling

Fouling happens when unwanted deposits, such as minerals, dirt, or biological matter, build up on the heat transfer surfaces. This creates an insulating layer that reduces thermal efficiency, increases pressure drop, and can lead to blockages. The U-bends in hairpin exchangers make cleaning more challenging.

Causes:

• Mineral scaling from hard water.
• Particulate fouling from dirt, sand, or suspended solids.
• Biological growth from algae or bacteria.
• Chemical reactions or corrosion products forming deposits.

Fixes:

• Implement regular cleaning schedules and use chemical cleaning with appropriate solvents.
• Mechanical cleaning methods like brushes or high-pressure water jetting can remove stubborn deposits.
• Install filtration systems or water treatment programs to reduce impurities and prevent future fouling.

Leaks

Leaks can occur internally or externally due to faulty seals, corrosion, or material fatigue.

Causes:

• Gasket failure due to poor design or installation.
• Tube damage from corrosion, erosion, or vibration.
• Material fatigue from repeated thermal cycling.

Fixes:

• Perform regular leak inspections and replace worn gaskets and seals.
• Temporary tube leaks can be fixed by plugging the tube, while extensive damage may require a full tube replacement.
• Ensure flange gaskets are properly installed with correct torque and sealing.

Corrosion

Corrosion occurs when the heat exchanger’s metal surfaces react with the fluid or the surrounding environment, leading to metal degradation.

Causes:

• Corrosive fluids with aggressive pH levels.
• Corrosion products build up, which can also lead to fouling.
• Erosion-corrosion from high-velocity fluids.

Fixes:

• Use corrosion-resistant materials like stainless steel or titanium.
• Apply protective coatings to the heat exchanger surfaces.
• Regularly monitor and adjust fluid chemistry to prevent corrosive conditions.

Vibration and Mechanical Issues

Vibration, often caused by high fluid velocities, can lead to mechanical failure and noise.

Causes:

• Flow-induced vibration from high fluid velocities.
• Deterioration of tube supports.
• External factors such as vibrations from pumps or fans.

Fixes:

• Reduce fluid velocity to minimize flow-induced vibrations.
• Add tube supports or anti-vibration bars to reduce excessive tube movement.
• Inspect and maintain existing tube support structures.

Excessive Pressure Drop

A high pressure drop, particularly on the shell side, reduces flow rate and heat exchanger performance.

Causes:

• Fouling and blockages that decrease flow area, increasing resistance.
• Incorrect design, such as poor baffle selection.
• Operating at higher than designed flow rates.

Fixes:

• Regular cleaning to remove fouling and blockages.
• Ensure the system operates within the specified flow rates.
• Adjust the baffle configuration or shell diameter to reduce pressure drop.

Air Pockets

Trapped air, especially on the shell side, can cause reduced heat transfer and corrosion.

Causes:

• Improper venting during startup.
• Faulty seals that allow air into the system.

Fixes:

• Properly vent the heat exchanger during startup to remove trapped air.
• Install air vents and ensure seals are intact to prevent air from entering the system.

Addressing these common issues proactively helps extend the lifespan and efficiency of hairpin heat exchangers, ensuring optimal performance and minimal downtime.




Troubleshooting Hairpin Heat Exchangers: Quick Fixes to Prevent Expensive Repairs

Hairpin heat exchangers are efficient and reliable, but like any piece of industrial equipment, they can encounter common issues such as fouling, scaling, leaks, and corrosion. Quick fixes for these problems often involve simple maintenance procedures or adjustments that can prevent minor issues from escalating into costly repairs. Regularly monitoring performance metrics is essential for identifying problems early and avoiding downtime.

Common Hairpin Exchanger Problems and Quick Fixes

1. Reduced Heat Transfer Efficiency

A drop in heat transfer efficiency is often a sign of fouling or scaling. This occurs when deposits accumulate on the inner tube surfaces, which restricts fluid flow and impedes heat exchange.

Quick fixes:

• Install a filtration system: Adding an upstream filter can help reduce the amount of particulate matter entering the exchanger.
• Schedule periodic flushes: Regular flushing with water or an appropriate cleaning agent can remove debris and mineral deposits.
• Adjust process fluids: Use chemical inhibitors or water treatment programs to control scale formation and biological growth.

2. Increased Pressure Drop

A noticeable rise in pressure drop across the heat exchanger indicates flow restrictions or blockages, often in the tubes or on the shell side. If ignored, this can reduce fluid flow, lower efficiency, and increase energy costs.

Quick fixes:

• Check flow rates: Ensure that both hot and cold fluid flow rates are within the manufacturer’s specified range.
• Inspect and clean strainers: A clogged strainer can lead to a significant pressure drop. Clean or replace the strainer if necessary.
• Conduct a cleaning-in-place (CIP) procedure: For mild blockages, in-situ chemical cleaning can dissolve fouling without needing to dismantle the exchanger.

3. Leaks and Corrosion

Leaks can occur due to gasket failure, corrosion, or mechanical damage, potentially contaminating process fluids and posing safety risks.

Quick fixes:

• Inspect gaskets and seals: Visually inspect for leaks or residue around gasketed connections, especially at the end closures. Replace damaged gaskets with the correct type.
• Check and tighten connections: Ensure flange and bolt connections are tightened to the manufacturer’s specifications to prevent leaks.
• Analyze fluid properties: If corrosion is suspected, check the chemical properties of your process fluids. If the process changes, consult the manufacturer to ensure the current metallurgy is still appropriate.

4. Overheating or Thermal Stress

Fluctuating temperatures and uneven heating can cause components to expand and contract excessively, leading to stress cracks over time.

Quick fixes:

• Ensure proper ventilation: Trapped air in the system can cause localized overheating. Make sure air vents are functioning correctly to release trapped air.
• Verify the sizing: Confirm that the heat exchanger is properly sized for its application and can handle the required flow rates and temperature differentials.
• Monitor temperature and pressure: Implement regular monitoring to detect temperature or pressure variations. Use infrared cameras to spot hot or cold spots caused by fouling or uneven flow.

Preventive Maintenance for Long-Term Reliability

• Establish a routine inspection schedule: Regular visual inspections help detect leaks, corrosion, and external damage early.
• Monitor key performance metrics: Track and analyze key indicators such as temperature differentials, pressure drops, and flow rates. Changes in these metrics can be early warnings of potential issues.
• Follow manufacturer guidelines: Adhere to the manufacturer's recommendations for cleaning, maintenance, and replacement intervals.
• Maintain fluid quality: Ensure proper fluid quality control by using filtered or treated water and avoiding corrosive agents, which helps minimize fouling and corrosion.

By implementing these quick fixes and preventive maintenance practices, you can keep your hairpin heat exchanger operating efficiently, extend its service life, and prevent expensive repairs.




Configurations

Hairpin heat exchangers come in two main configurations, each with unique benefits, and can be customized for optimal performance in various industries.

Double-Pipe Hairpin

This design features a smaller inner pipe surrounded by a larger outer pipe, bent into a U-shape. Fluid flows in opposite directions within these pipes, creating a counter-current flow for efficient heat transfer.

Ideal Use: Perfect for small-scale applications with high fouling or high-pressure fluids. Some models also feature longitudinal fins for better heat transfer in low thermal fluids.

Multi-Tube Hairpin

For larger thermal loads, this configuration uses multiple U-shaped tubes within a shell, often with baffles to direct fluid flow across the tubes.

Ideal Use: Suitable for larger applications with higher flow rates.

Tube Bundle Options:

• Removable Bundle: Easier maintenance and accommodates thermal expansion.
• Welded Bundle: More cost-effective but fixed in design.

Flexible System Arrangements

Hairpin heat exchangers can be arranged in series, parallel, or stacked configurations, allowing you to customize your setup for optimal heat transfer and flow capacity.




Comparison

Hairpin vs Multi-Tube Heat Exchangers

Feature	Hairpin Heat Exchanger	Multi-Tube Heat Exchanger
Flow Pattern	True counter-current flow for high thermal efficiency, ensuring better heat transfer and energy savings.	Flexible configurations: counter-flow, parallel-flow, or cross-flow, often with multi-pass designs.
Thermal Efficiency	Higher thermal efficiency in temperature cross applications, without the need for LMTD correction.	Lower efficiency in temperature cross applications, requiring additional LMTD correction.
Design and Footprint	Compact and space-efficient design, perfect for limited space installations, enhancing cost-effectiveness.	Larger footprint, especially for high heat duties or temperature cross conditions.
Handling Extreme Conditions	Ideal for high temperatures, high pressures, and thermal cycling, thanks to its flexible U-tube design.	Versatile, but fixed tube-sheet designs require expansion joints to handle thermal stress.
Maintenance and Cleaning	Easy maintenance with removable tube bundles, ideal for fouling fluids; shell-side cleaning is straightforward.	Removable bundles (e.g., floating head) allow for cleaning of both sides, ideal for fouling fluids.




Hairpin heat exchanger vs shell-and-tube

Feature	Hairpin Heat Exchanger	Shell-and-Tube Heat Exchanger
Design	U-shaped, single-pass tubes in a shell	Multi-pass tubes within a shell
Footprint	More compact and smaller footprint	Larger and more substantial design
Flow	True counter-current flow, maximizing temperature approach	Multi-pass flow, may require multiple units for close temperature approach
Efficiency	High thermal performance, especially for temperature crosses	Good efficiency for large duties
Pressure	Excellent for high-pressure applications	Moderate pressure capability
Maintenance	Easier to clean and maintain due to removable tube bundle	More complex maintenance; tube bundle removal is required
Cost	Potentially higher initial cost, but can be cheaper overall due to size savings	Less expensive for large duties, but can be costly for small duties
Applications	High-pressure, high-temperature cross, cyclic service, and low flow rates	Large flow rates, moderate pressure applications, and larger duties




Hairpin heat exchanger vs double pipe

Feature	Double Pipe Heat Exchanger	Hairpin Heat Exchanger
Structure	Simple, straight, concentric pipes	U-shaped or "hairpin" bends, making it a series of double pipe exchangers
Size and Space	Can be long and require more space	More compact due to the U-tube design, saving space
Efficiency	Efficient, but less surface area per length than hairpin	Higher thermal efficiency due to greater surface area in a smaller footprint
Applications	Suitable for high-pressure applications and small flow rates	Ideal for high-temperature, high-pressure applications where space is limited
Maintenance	Can be more complex to clean if multiple units are used	Easier to maintain; modular U-tube design can be disassembled for cleaning
Cost	Generally less expensive initially	More expensive due to more complex manufacturing




Components

• Shell: The outer pipe casing containing the U-shaped tube bundle.
• Tube Bundle: Removable element assembly with U-shaped tubes for heat transfer.
• Tube Sheet: Plate supporting and separating the tubes from the shell.
• Closures: End components that seal the shell and allow access for maintenance.
• Baffles: Used in multi-tube hairpin designs to direct shell-side flow and increase efficiency.
• Fins: Integrated with tubes in some designs to increase surface area for heat exchange.
• Tie Rods and Spacers: Components holding the tube bundle together.
• Nozzles: Connections for process fluids to enter and exit the heat exchanger.
• Return Bend Housing: Structure enclosing the U-bend of the inner tubes.
• Gaskets: Provide a leak-tight seal between components, especially the shell and tube sides.

Real-World Use Cases of Hairpin Heat Exchangers in Industrial Applications

Hairpin heat exchangers are known for moving heat very well, being small, and working strongly even under high pressure and temperature. Their special U-shaped tubes let fluids flow in opposite directions, which helps them transfer heat better than regular shell-and-tube exchangers. Here are some common ways they are used in different industries:

Oil and Gas Industry

• Crude oil preheating: Heating crude oil before refining to make the process faster.
• Gas processing: Cooling and heating gases in gas plants.
• Heat recovery: Capturing waste heat in refineries to save energy.
• High-pressure and temperature uses: Strong designs for tough oilfield conditions.
• Handling thick or dirty fluids: Special double-pipe hairpins work well with heavy oils and fluids that cause fouling, cutting down cleaning time. Learn more about double-pipe heat exchangers and their applications.

Chemical and Petrochemical Industry

• Controlling reactor temperatures: Keeping chemical reactions at the right temperature.
• Solvent recovery: Helping distill and recycle solvents efficiently.
• Condensation and vaporization: Handling changes between liquid and gas phases.
• Corrosion resistance: Made from strong materials like stainless steel or titanium to handle harsh chemicals safely.

Power Generation Industry

• Preheating boiler water: Heating water before it goes into boilers to save energy.
• Steam condensation: Moving heat from steam to liquids in power plants.
• Thermal shock resistance: Built to handle big temperature changes without damage.

Food and Beverage Industry

• Pasteurization and sterilization: Keeping food safe with steady heating and cooling.
• Heating and cooling liquids: Managing temperature for drinks and food products.
• Hygienic design: Easy to clean and meets food safety rules.

Other Special Uses

• Pharmaceuticals: Precise temperature control for clean and sterile processes.
• HVAC systems: Cooling and heating in large buildings.
• Cooling for lab and factory equipment: Compact and reliable systems to keep machines cool.
• Cryogenic uses: Working at very low temperatures in science and industry.
• Aerospace and marine: Tough, compact heat exchangers for engine and turbine cooling.

Hairpin heat exchangers are flexible and powerful. They work in many industries where space is limited, conditions are tough, and heat transfer must be efficient.




Conclusion:

At United Cooling Systems, we provide reliable hairpin heat exchangers that help industries move heat efficiently. Our U-tube design handles high pressure, heat changes, and corrosive fluids while keeping maintenance easy.

Engineers in oil and gas, chemical plants, power stations, and refineries can trust our systems for energy-efficient, long-lasting, and safe performance. Choosing United Cooling Systems means getting a compact, efficient, and durable heat transfer solution.




FAQ

1. What is a hairpin heat exchanger?

A hairpin heat exchanger is a device that moves heat between two fluids using U-shaped tubes. It is small and works well in places with high pressure or temperature. It is used a lot in factories where space is tight.

2. What does “hairpin” mean in a heat exchanger?

“Hairpin” means the tubes are bent in a U-shape, like a hairpin. This lets fluids flow in opposite directions inside the same tubes. This design helps move heat better and saves space.

3. How is a hairpin heat exchanger different from a shell and tube heat exchanger?

• Hairpin heat exchangers use U-shaped tubes and are compact.
• Shell and tube heat exchangers have straight tubes and are bigger.
• Hairpin exchangers are good for high pressure and two-phase flows.
• Shell and tube exchangers are better for large, low-pressure jobs.

4. Who makes hairpin heat exchangers in India?

United Cooling Systems Pvt Ltd is a leading manufacturer of hairpin heat exchangers in India. They serve industries like chemical, power, and oil & gas.

5. What are the disadvantages of hairpin heat exchangers?

• They cost more to make.
• They are harder to clean than straight tubes.
• They can be difficult to scale up for very large systems.
• Not ideal if you need frequent cleaning.

6. When should I use a hairpin heat exchanger?

Use it when you need:

• High heat transfer efficiency in a small space.
• To work under high pressure or with two-phase fluids.
• Reliable performance in oil & gas, power, or chemical industries.

7. What is a hairpin type heat exchanger?

It is a compact heat exchanger with U-shaped tubes. It works well in tight spaces and offers good heat transfer. It can come in standard or custom designs.
