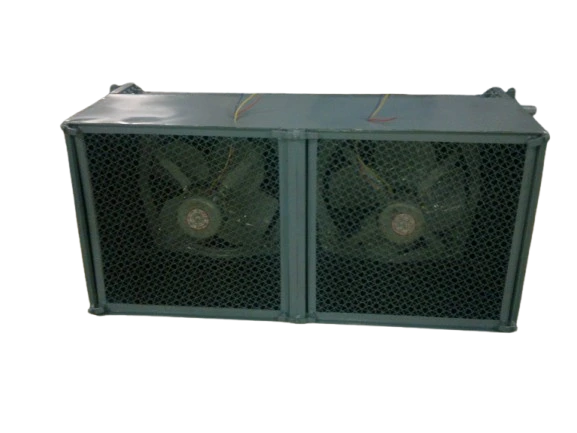

An Air Blast Oil Cooler uses airflow to cool engine or hydraulic oil for efficient performance.
Ever wondered how engines, compressors, and heavy industrial machines stay cool even under extreme loads? The secret lies in an efficient air blast oil cooler.
This essential oil cooling system circulates oil through specialized coils or tubes while a strong airflow removes excess heat. By maintaining the right oil temperature, it protects engines, reduces wear, boosts performance, and extends the lifespan of your machinery.
This guide is perfect for:
Oil is not just a lubricant—it also carries heat away from moving parts. When oil overheats, it loses efficiency, which can cause machine breakdowns and costly repairs. A well-designed hydraulic oil cooler or engine cooling unit ensures oil stays within optimal temperature ranges, keeping compressors, turbines, and other heavy equipment safe and efficient.
With modern machinery becoming more powerful, reliable airflow coolers and heat exchangers are more important than ever. Understanding how these systems work can improve maintenance, increase efficiency, and open career opportunities in mechanical engineering, industrial maintenance, and machine design.
Curious how this simple yet powerful device keeps machines running safely? Let’s dive into the world of the air blast oil cooler and explore its design, operation, and benefits.
There are several types of oil coolers available today, each suited for different applications based on cooling method, installation setup, and available resources. Two of the most common are the air blast oil cooler and the water cooled oil cooler.
Air blast oil coolers use forced convection — a fan blows ambient air over a tube-type heat exchanger to dissipate heat from the oil. This makes them ideal for remote or dusty environments, especially where water access is limited or unavailable. They’re widely used in mobile equipment like tractors, excavators, and construction machines.
Air blast systems are also cost-effective, require less maintenance, and are simple to install — especially useful for off-grid or portable machinery.
A water cooled oil cooler uses circulating water to extract heat from oil more rapidly. These coolers often feature U tube heat exchanger or copper heat exchanger designs, offering excellent thermal conductivity and efficient heat transfer. However, they require a reliable and clean water supply, making them better suited for fixed installations in factories, marine engines, and large-scale hydraulic systems.
They offer fast and effective cooling but typically demand more maintenance due to scaling, water quality issues, or corrosion concerns.
| Feature | Air Blast Cooler | Water-Cooled Cooler |
|---|---|---|
| Cooling Method | Air-to-air (forced convection) | Water circulation |
| Best for | Mobile and remote equipment | Fixed industrial systems |
| Maintenance | Low | Medium to High |
| Water supply needed? | ❌ No | ✅ Yes |
| Operating cost | Low (Cost-effective cooling) | Medium to High |
Choosing between air blast and water cooled oil coolers—and the type of fan drive—depends on application, environment, cooling needs, and available resources.
Air blast oil coolers—also called air heat exchangers—use ambient air to cool hot oil without water. Oil flows through finned tubes, and a fan blows air across the surface, pulling heat out of the oil. This is called forced convection cooling.
Airflow is key. A strong electric or hydraulic fan pushes air over the cooler:
The faster the airflow, the better the cooling.
The cooler uses finned tube bundles to increase surface area. This helps transfer more heat from the oil to the surrounding atmospheric air. It's ideal for dusty, dry, or remote locations where water isn’t available.
Air blast oil coolers are energy-efficient and low-maintenance. They don’t need pumps or a water supply—making them perfect for:
If you're running heavy-duty or mobile machines, air blast oil coolers give you a reliable, cost-saving solution for oil temperature control—keeping your equipment running cooler, longer, and with less hassle.
The structure and hardware of an air blast oil cooler play a crucial role in maintaining efficiency, durability, and long-term performance. These components are designed to withstand harsh operating conditions while providing reliable cooling. Below is a breakdown of the typical materials and construction used in air blast oil coolers.
| Component | Material | Description |
|---|---|---|
| Frame Structure | Galvanized Steel / Stainless Steel | Provides strong support and corrosion resistance. |
| Cooling Fins | Aluminum / Copper | Maximizes heat transfer with excellent thermal conductivity. |
| Fan Assembly | Aluminum / Stainless Steel | Ensures efficient airflow with corrosion-resistant materials. |
| Oil Inlet/Outlet Connections | Steel / Brass | Ensures secure and leak-proof oil flow. |
| Vibration Dampeners | Rubber / Steel | Reduces vibrations, preventing damage to components. |
| Fan Motor & Bearings | Cast Iron / Steel | Drives fan and pump with robust and heat-resistant construction. |
| Belt & Pulley System | Rubber / Steel | Transfers power efficiently from motor to fan. |
| Heat Exchanger Core | Copper / Aluminum / Stainless Steel | Facilitates efficient heat transfer from oil to air. |
| Casing & Housing | Galvanized Steel / Stainless Steel | Protects internal components and resists corrosion. |
| Water & Oil Seals | Rubber / Silicone | Prevents leaks and ensures efficient system operation. |
These materials and components are carefully selected to optimize the performance and lifespan of the air blast oil cooler, ensuring that it operates at peak efficiency while minimizing the need for repairs or replacements.
Knowing the right features and specs helps you pick the best air-cooled heat exchanger for your oil cooling system.
Measured in kW or BTU/hr, this shows how much heat the cooler can remove.
Match capacity to your oil type, flow rate, and temperature needs.
High pressure (bar or psi) and proper oil flow (LPM or GPM) keep your system safe and smooth. The right specs prevent slowdowns and damage.
Choose materials based on where your machine works to avoid rust and wear.
Good design and variable-speed fans boost performance in small units.
Picking the right air blast oil cooler means better protection, less downtime, and energy savings—especially for tough jobs in construction, mining, agriculture, and mobile machinery.
Air blast oil coolers use outside air—not water—to keep oil cool, making them perfect for tough and remote environments.
No water supply or plumbing means:
Built tough for construction, mining, and farm machines:
They offer reliable, affordable, and easy-to-maintain cooling for mobile machines and big industrial systems—helping you avoid costly breakdowns and keep operations running smoothly.
Air blast oil coolers are widely used to prevent overheating, maintain efficiency, and extend the life of equipment. They are ideal for industries and environments where water cooling is impractical or unavailable. Their rugged design makes them perfect for heavy-duty applications in construction, mining, marine, and power generation.
Air blast oil coolers keep hydraulic fluid at optimal temperatures in power packs, presses, and other machinery. This prevents breakdowns and ensures smooth, reliable operation.
They are essential for cooling engines, transmissions, and gearboxes in heavy vehicles, construction machinery, and industrial equipment, preventing overheating and improving performance.
From CNC machines to compressors and plastic molding units, air blast coolers maintain consistent operating temperatures, helping industrial systems run efficiently.
Designed for harsh, dusty, and rugged environments, they provide reliable cooling for heavy equipment where water-cooled systems cannot be used.
Power Generation:Air blast oil coolers help maintain safe temperatures in generators, turbines, and transformers, ensuring continuous and reliable power output.
Applications include cooling systems in wind turbines and other renewable power generation equipment, supporting efficiency and longevity.
Proper maintenance keeps your air blast oil cooler working efficiently and extends its lifespan. Follow this simple checklist to stay on top of maintenance tasks.
| Task | Description | Frequency |
|---|---|---|
| Regular Inspection Schedule | Check for signs of wear, leaks, corrosion, and unusual noises. | Monthly or quarterly |
| Cleaning the Heat Exchanger | Remove dust, dirt, and debris from fins and fan blades to improve airflow. | Every 3–6 months |
| Checking for Leaks & Corrosion | Inspect oil lines, fittings, and cooler casing for leaks or rust. | Monthly |
| Replacing Filters & Electrical Components | Change filters to maintain oil purity; check fan motor and sensors for proper operation. | Annually or as needed |
| Seasonal Maintenance | Adjust maintenance based on climate — more frequent cleaning in dusty/hot environments; check seals in cold weather. | Seasonal |
Regular preventive maintenance prevents breakdowns, improves heat exchanger efficiency, and reduces downtime. Cleaning the heat exchanger and replacing worn parts like the fan motor ensures smooth operation.
Even with good maintenance, problems can happen. Here’s a quick guide to identify and fix common issues with air blast oil coolers.
| Problem | Possible Cause | Solution |
|---|---|---|
| Overheating despite cooler operation | Oil flow restriction or clogged heat exchanger | Clean heat exchanger; check oil flow and filters |
| Fan not working or intermittent failures | Fan motor failure or electrical issues | Inspect fan motor, wiring; replace if faulty |
| Excessive noise or vibration | Loose mounting or damaged fan blades | Tighten mounts; inspect and replace fan blades |
| Low oil pressure or flow restriction | Blocked oil lines or faulty pump | Check oil lines for clogs; repair or replace pump |
| Sensor or thermostat malfunctions | Faulty thermostat or sensor wiring | Test and replace sensors or thermostat as needed |
Knowing why your air blast cooler is not working helps prevent long-term damage. Fixing overheating problems early saves costly repairs and downtime.
Maintaining your air blast oil cooler regularly is key to ensuring maximum performance and avoiding unexpected downtime. Here’s a streamlined checklist with clear tasks and frequencies to keep your cooler running efficiently:
| Task | Frequency |
|---|---|
| Visual Inspection of Oil Cooler | Weekly |
| Clean Cooling Fins & Vents | Monthly |
| Lubricate Fan Bearings | Quarterly |
| Test Oil Temperature & Pressure | Weekly |
| Check Oil Flow & Filter Condition | Monthly |
| Inspect for Leaks & Physical Damage | Monthly |
| Check Belt Tension / VFD Settings | Monthly |
| Monitor Fan Motor Operation | Monthly |
| Flush Oil System & Replace Filter | Annually or as needed |
| Descaling & Biocide Dosing | As needed (based on oil quality and system analysis) |
| Feature | Air Blast Oil Cooler | Water Cooled Oil Cooler |
|---|---|---|
| Cooling Method | Uses ambient air to cool oil through fans | Uses water as a cooling medium to cool oil |
| Space Requirement | More compact, requires less space | Requires larger space for water tanks and plumbing |
| Efficiency | Effective for low to moderate cooling needs | More efficient in higher capacity and heavy-duty applications |
| Maintenance | Easier maintenance, fewer components to manage | More complex, requires regular cleaning of water tanks and pipes |
| Water Usage | Does not require water, ideal for dry areas | Relies on water supply, can lead to issues in water-scarce areas |
| Installation Cost | Generally lower, no need for additional plumbing | Higher initial cost due to water system and plumbing |
| Environmental Impact | Lower water consumption, more eco-friendly | Uses water, which can have higher environmental impact in areas with water scarcity |
| Noise Levels | Can be noisier due to the fans | Quieter operation due to the absence of fans |
| Cost | More cost-effective for smaller operations | Higher cost for larger cooling capacities, more complex system |
| Best Use Case | Suitable for small to medium-sized operations | Ideal for large, industrial applications requiring high cooling capacity |
The air blast oil cooler market is advancing with a focus on energy efficiency, smart technology, and sustainability. Here are the key trends shaping the future of cooling systems:
At United Cooling Systems, we understand how critical reliable thermal management is for your hydraulic systems, diesel engines, and heavy machinery. Air blast oil coolers provide us—and you—with an efficient, low-maintenance cooling solution that doesn’t rely on external water supplies, making them ideal for remote locations and mobile applications.
Together, we can ensure your equipment runs cooler, longer, and more efficiently, especially in tough environments like mining, agriculture, and construction. When choosing between different cooling methods, air blast oil coolers offer a perfect balance of performance, cost-effectiveness, and ease of maintenance.
An air blast oil cooler removes excess heat from oil by using air to cool it through a heat exchanger. This prevents overheating and helps maintain stable operating temperatures in hydraulic systems, engines, and industrial machinery.
An air blast oil cooler is ideal when water is not readily available or when you want a low-maintenance, energy-efficient solution. It eliminates the need for water treatment, reduces operational costs, and simplifies installation.
Air blast oil coolers help solve common issues like overheating, oil breakdown, system inefficiency, and unexpected equipment downtime. They’re essential for protecting sensitive components and ensuring consistent machine performance.
To choose the right air blast oil cooler, consider factors like oil flow rate, operating temperature, ambient conditions, and space constraints. United Cooling Systems offers expert guidance to help you select the perfect match for your needs.
Air blast oil coolers are widely used in industries such as construction, mining, manufacturing, marine, and power generation — anywhere that hydraulic systems, engines, or gearboxes require reliable, air-based oil cooling.
By maintaining optimal oil temperature, an air blast oil cooler reduces thermal stress on system components, prevents oil degradation, and ensures smoother operation — all of which contribute to a longer equipment lifespan.
Yes, modern air blast oil coolers are designed for energy efficiency. They use high-efficiency fans and optimized airflow to minimize power consumption while delivering maximum cooling performance.
Air blast oil coolers are low-maintenance. Regular checks for debris on the cooling fins, fan motor inspection, and occasional cleaning are usually sufficient to keep them running efficiently.
Yes, many air blast oil coolers are built with rugged enclosures and corrosion-resistant materials, making them suitable for outdoor and harsh industrial environments.
